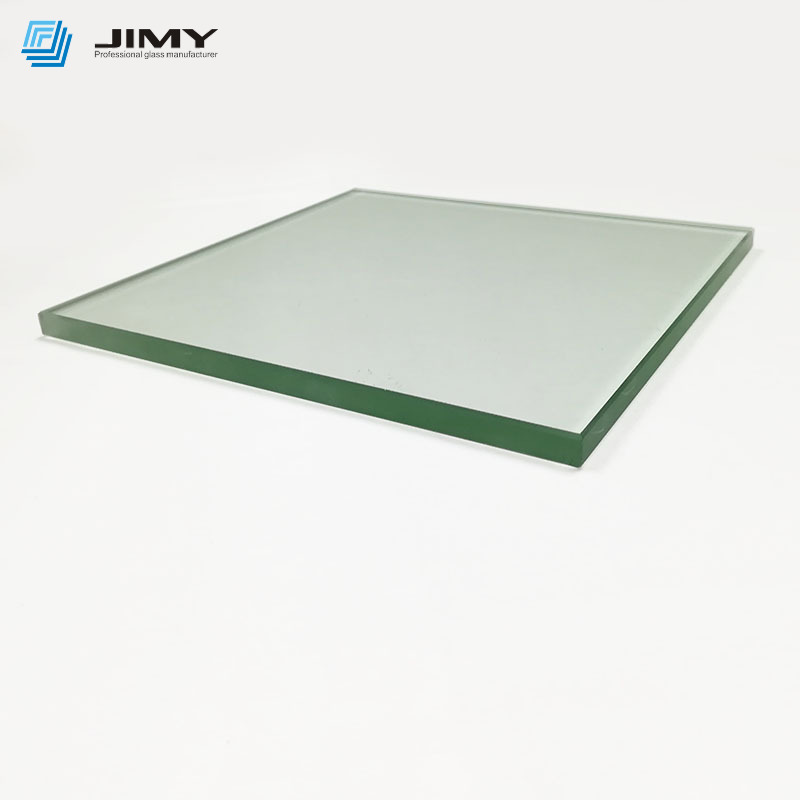

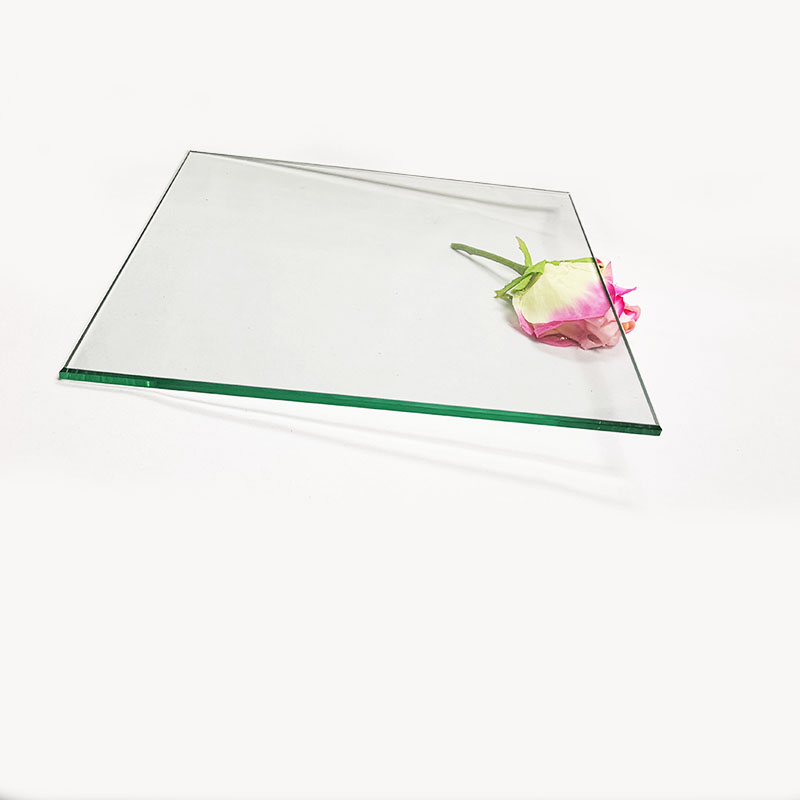

Clear semi tempered half toughened heat strengthened building glass

 Specifications

Clear heat strengthened tempered building glass
Thickness: 4mm, 5mm, 6mm, 8mm, 10mm, 12mm, 15mm, 19mm
Size: custom size
Color: clear transparent
Shape: flat

 What Is Heat Strengthened Tempered Glass

Heat strengthened tempered glass is also known as semi tempered glass and half toughened glass,  it is produced by heating the glass to approximately 1,300Fo and then natural cooling but not rapidly colling it with air. The resultant glass is thermally strengthened and approximately 2 time stronger than a piece of annealed glass.

 Differences Between Annealed, Tempered, and Heat-Strengthened Glass

Annealed Glass: also referred to as non-tempered and float glass. Annealed glass does not have the strength of tempered glass. When used for glass doors or windows, it is usually combined in two or three layers with a plastic interlayer to create laminated glass that has increased durability, strength, and reduced shatter danger. Annealed glass is used when an economical solution is desired.

Full Tempered Glass: tempered glass is also referred to as toughened glass, as it takes annealed glass and makes it stronger by heating it to roughly 700° Celsius (1,200° Fahrenheit) and then force-cools it at an accelerated rate, depending on the properties desired in the finished glass product. The result is glass with a higher surface compression (>10,000 psi) that is 4 to 5 times stronger to resist breakage, has less chance of thermal stress break, and when damaged, creates small fragments rather than dangerous shards.

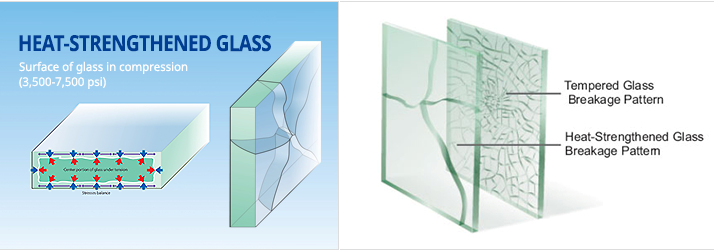

Heat Strengthed Glass: the process of making heat-strengthened glass is similar to tempered glass, except the cooling process is slower, resulting in a lower surface compression (3,500 to 7,500 psi). This makes it roughly twice as strong as annealed glass. The breakage pattern more closely resembles annealed glass. Although it doesn’t shatter like tempered glass, it can fracture into dangerous shards. Another advantage of heat-strengthened glass over tempered glass is that there is less distortion, making it ideal when clarity is important.

 Characteristics


• Approximately twice as strong as annealed glass of equal thickness
• Higher thermal stress resistance than annealed glass
• Typically will break into larger pieces than tempered glass
• Less optical distortion than tempered glass
• Not have risk of spontaneous breakage

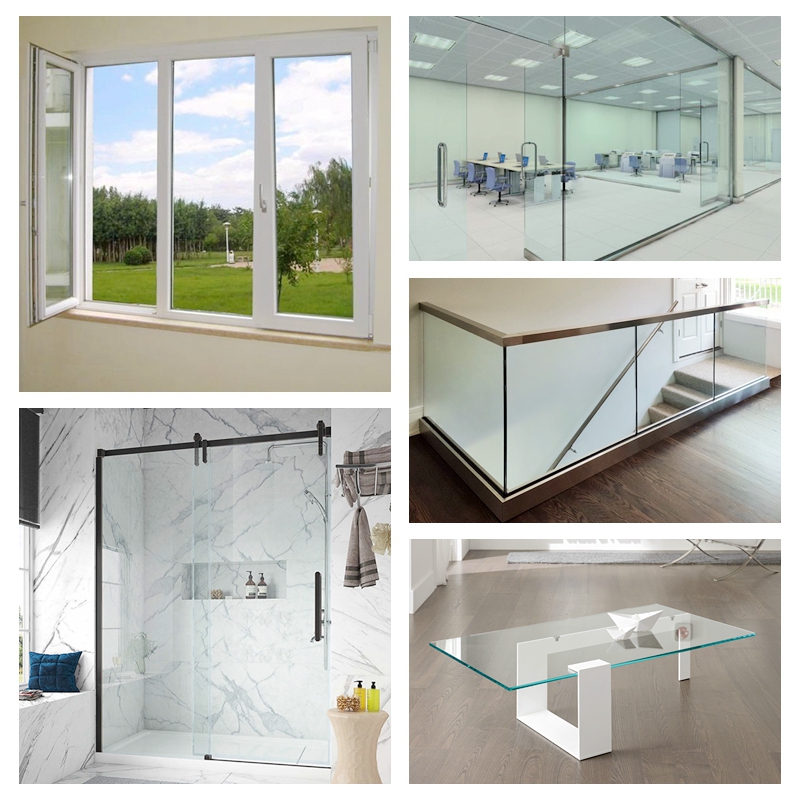

 Applications

Glass window and door

Shower door

Partition wall

Glass railing and handrail

Glass furniture
