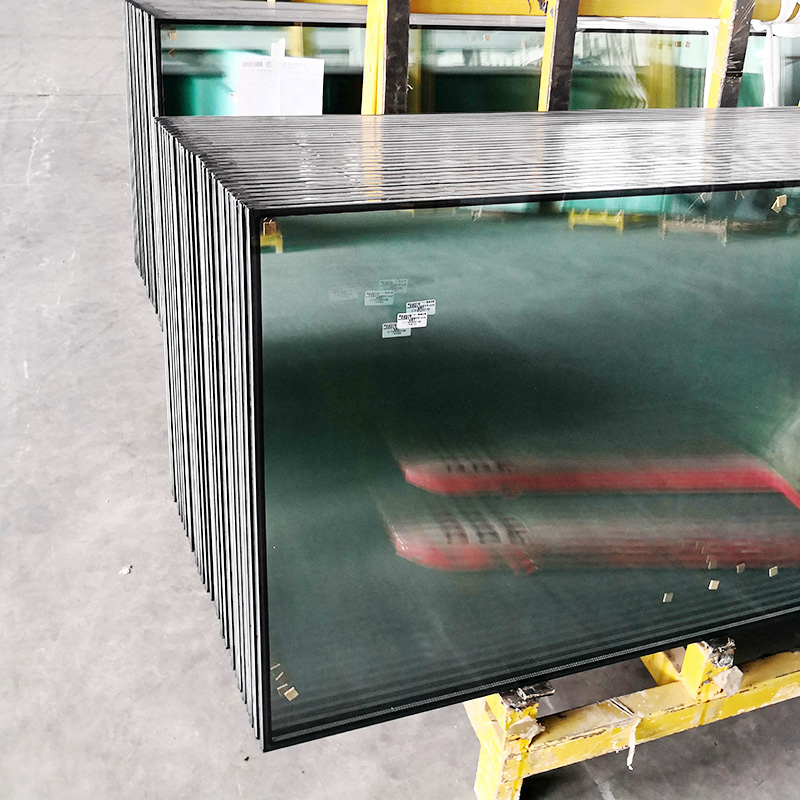

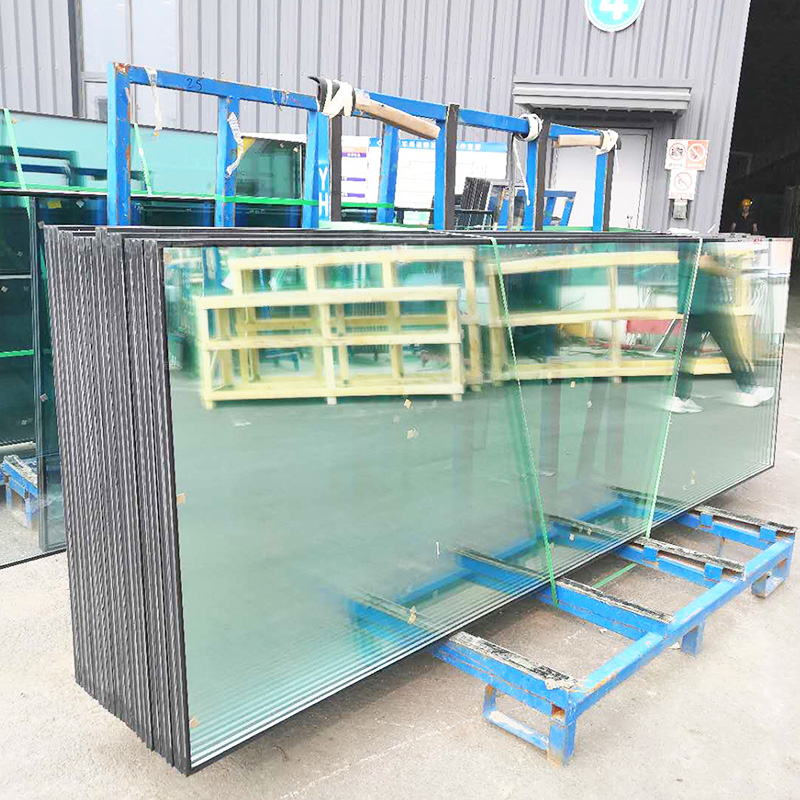

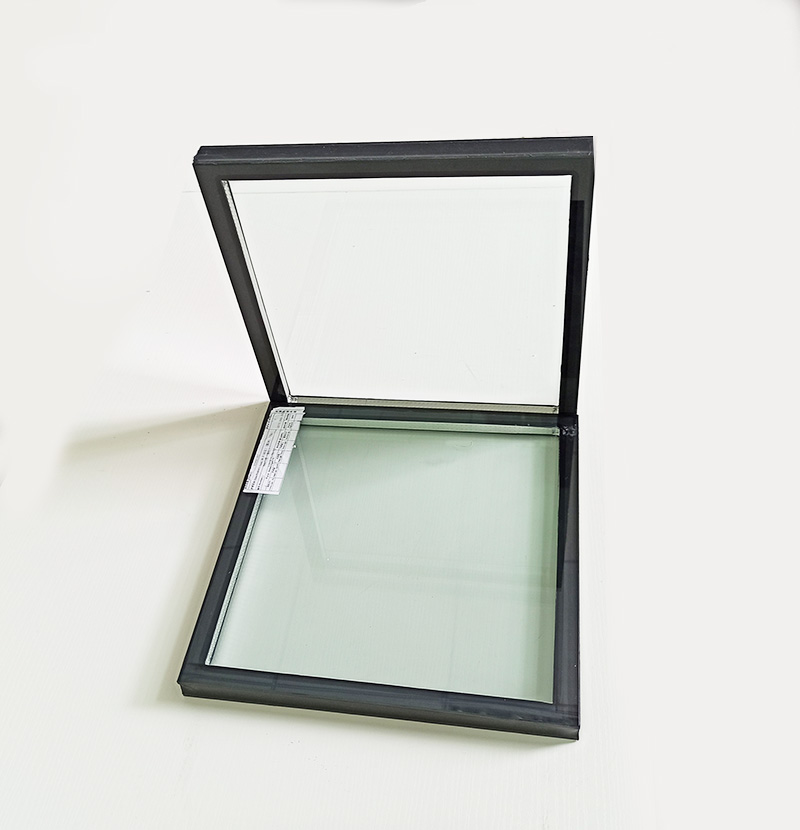

6mm+9A+6mm low e tempered insulated double glazing glass unit

 Specifications

Product: 21mm thick low e insulated glass
Composition: 6mm low e tempered glass+9mm spacer+6mm clear tempered glass
Size: custom size, cut to customer's demand size
Color: custom color
Spacer filled: dry air, argon
Sample: available

 Description

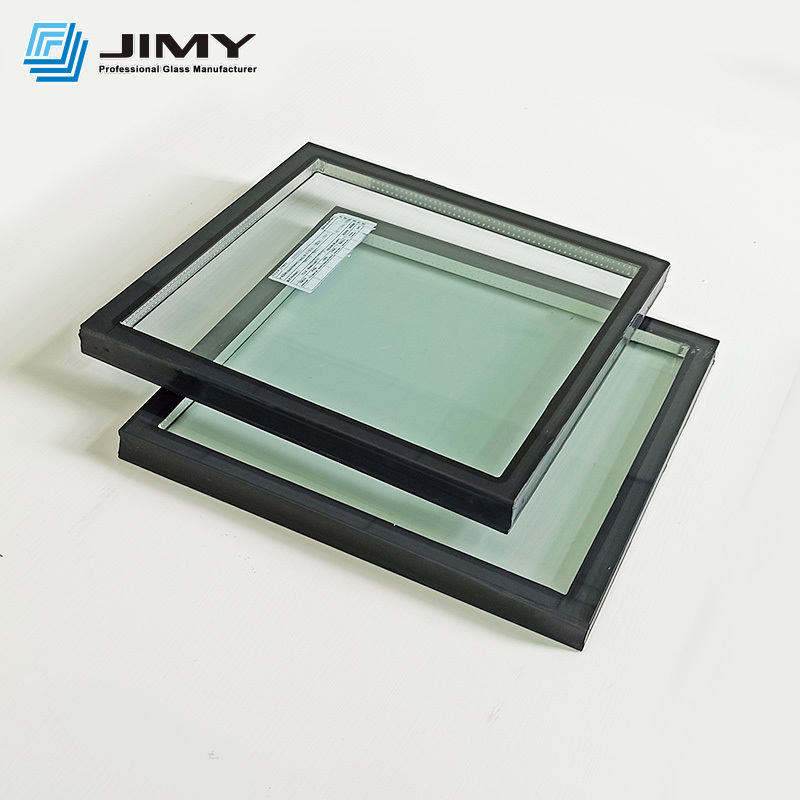

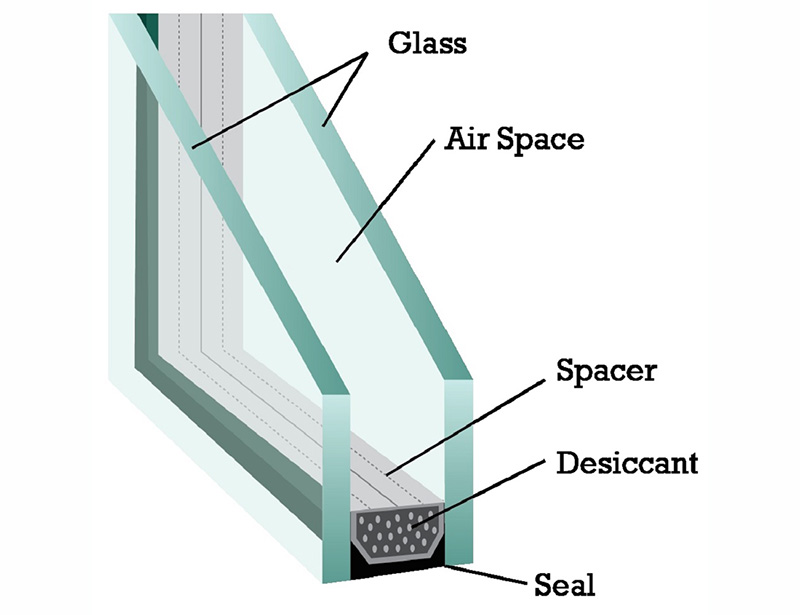

21mm low e tempered insulated glass is a combination of one sheet of 6mm low e tempered glass and one sheet of 6mm clear tempered glass with a layer of 9mm gas namely argon or dry air in between them.  The two pieces of glass are further separated by an aluminium spacer bar which has holes in it; a desiccant which might be silica gel or zeolite is used below the spacer bar material so as to absorb any moisture that may be initially present in between the glass panes. A primary sealant is used on the inside to fix the spacer bar to the inside of the glass panes while a secondary silicone sealant is used on the outside.

 Composition

Glass: the glass in double glazing can be a range of thicknesses or type. tempered or laminated glass may be used in areas where safety or strength is a priority.  Double glazing can also contain up to three panes of glass where extra heat or sound insulation is required. Thicker glass is more expensive but more efficient.

Spacer: double galzing utilize a spacer that separates the two glass panes where they meet at the edges. These spacers usually have some sort of desiccant to absorb moisture between the panes and prevent fogging.

Gas: in general, an gas such as dry air or  inert gas of argon creates the insulating barrier between the indoors and outdoors.

 Benefits

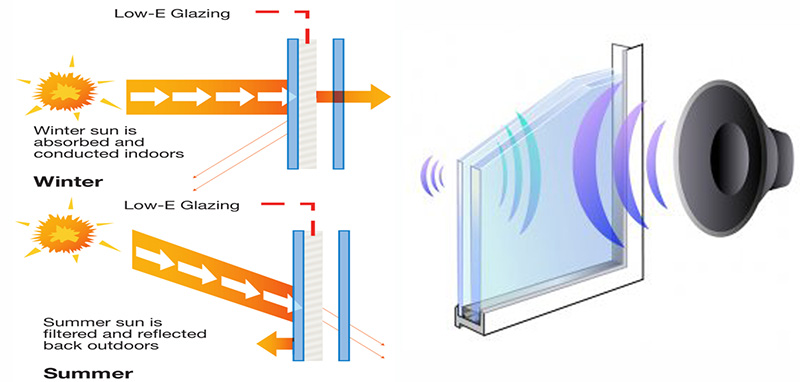

1.  Be comfortable inside the building:
The insulated glass are especially useful when experiencing extreme temperatures such as really cold winters and steaming summers. The temperatures are regulated, thus making your stay inside your home cozy and comfortable.

2. Lower carbon footprint by saving energy
Insulated glass windows prevent heat loss when it is cold and sustain having cool air when it is hot. This will then reduce the power being consumed in order to maintain the inside of your building at the desired temperature.

3. Keep noise from getting in
The thick layers of glass prevent sounds and noises from the outside from going inside the building. The air in between the glass panes limit noise from passing through.

4. Lessen the accumulation of moisture
Insulated glass block the moisture from the cold, preventing condensation from forming.

5. Insulated glass windows can keep safe and secure
Tempered insulated glass is tougher and more difficult to break. This then increases the safety and security inside a home. Also, because of the airtight sealing, they are harder to force open and break into than regular windows.

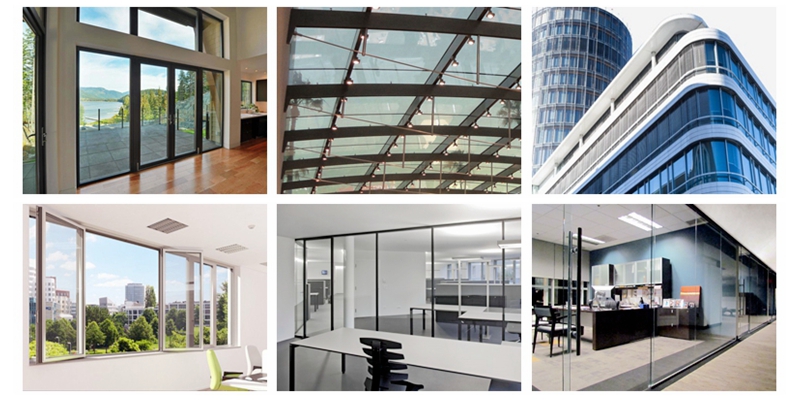

 Applications

• Glass window and door
• Glass curtain wall and facade
• Glass roof and skylight
• Glass partition wall
