Specifications

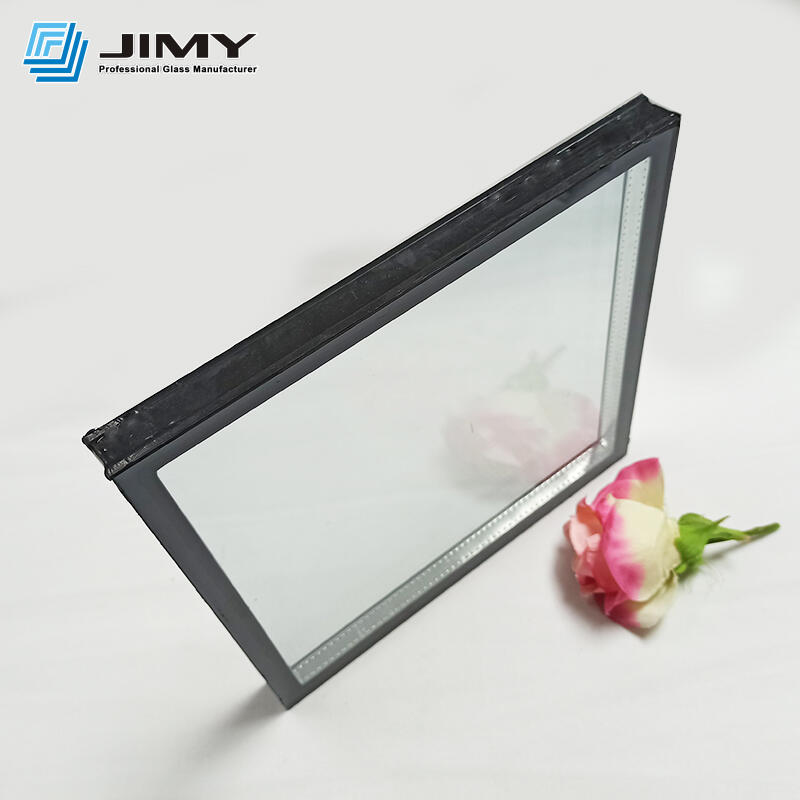

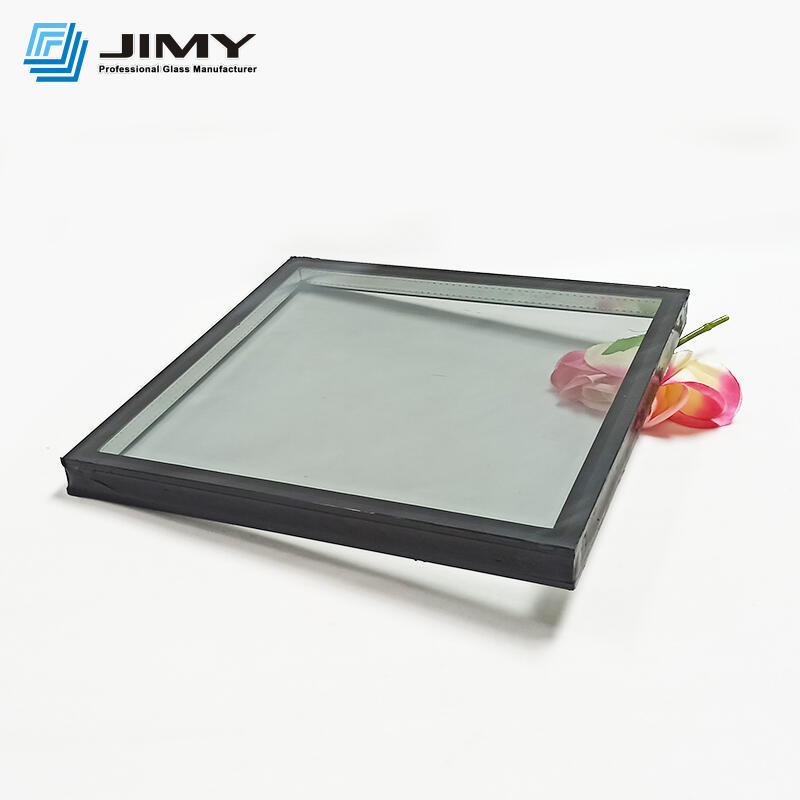

Product: insulated glass, double glazed glass
Application: building curtain wall
Glass thickness: single glass thick is usually 4-12mm
Spacer thickness: 6mm, 9mm, 12mm, 15mm etc.
Single glass type: low e glass, reflective glass, tempered glass, laminated glass etc.
Glass composition: glass+spacer+glass
Glass color: custom color
Glass size: custom size
Glass shape: flat and curved are all avaiable

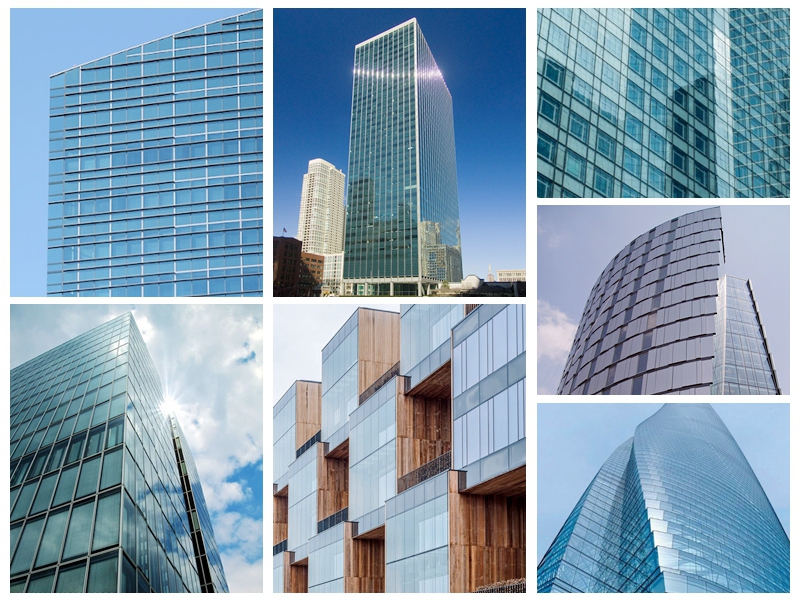

Insulated Glass for Building Curtain Wall
An insulating glass unit is a contemporary glass composed of multiple panes sealed together with air space in between, which gives the glass its insulating properties by separating the outside pane from the inside pane. Thanks to this unique arrangement, insulating glass is the most effective way to reduce air-to-air heat transfer through glazing.

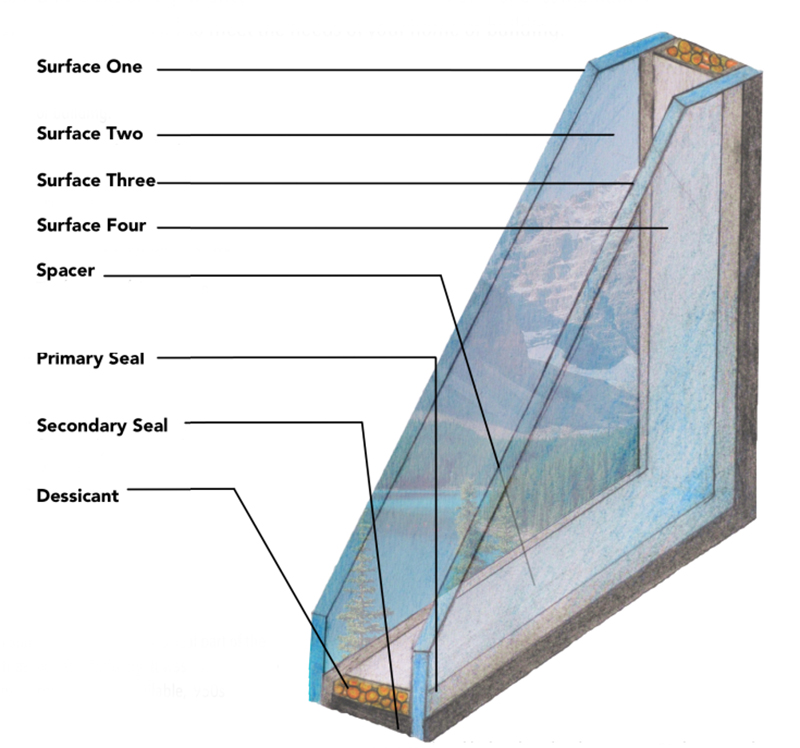

Structure of Insulated Glass
Surface One
The surface of the unit that is usually exposed to the exterior portion of the bullding.
Surface Two
Usually is instaled as the interior facing surface of the exterior pane.
Surface Three
The exterior facing surface of the interior pane.
Surface Three
The surface of the unit that is exposed to the interior of the home or office.
Spacer
The function of the spacer is to maintain the distance between the two panes of glass. This insures there is an air cavity. This air cavity is what givethe insulated glass unit its insulating power.
Primary Seal
Typically, an organic seal that is highly water resistant. Helps ensure that condensation does not form in the air cavity of the unit.
Secondary Seal
Commonly, a structural seal that is resistant to aging and weathering. Helps bond the glass and spacer together.
Desiccant
This material acts as a moisture absorbent. Any moisture present at the time of manufacturing and some that may get through the primary and secondary seal is absorbed by the desiccant.
Bebefits of Used Insulated Glass for Curtain Wall
- Reduces room condensation
- Greater energy efficiency
- Reduces sound transmission from outside
- Attractive aesthetics
- Improves comfort of building
- Increases light and view
- Greater thermal insulation
