55.4 11.52mm 5+1.52+5mm tempered toughened safety laminated glass sheet for sale
55.4 11.52mm 5+1.52+5mm tempered toughened safety laminated glass sheet for sale
55.4 11.52mm 5+1.52+5mm tempered toughened safety laminated glass sheet for sale
55.4 11.52mm 5+1.52+5mm tempered toughened safety laminated glass sheet for sale
55.4 11.52mm 5+1.52+5mm tempered toughened safety laminated glass sheet for sale
55.4 11.52mm 5+1.52+5mm tempered toughened safety laminated glass sheet for sale
55.4 11.52mm 5+1.52+5mm tempered toughened safety laminated glass sheet for sale
55.4 11.52mm 5+1.52+5mm tempered toughened safety laminated glass sheet for sale
55.4 11.52mm 5+1.52+5mm tempered toughened safety laminated glass sheet for sale

55.4 11.52mm 5+1.52+5mm tempered toughened safety laminated glass sheet for sale

Model NO.
PVBLG006
Delivery
FOB, CIF, EXW, DAP
Minimum order quantity
1 square meter
Supply Ability
6000 square meter / Day
Country of Origin
China
Stock Time
14 Days
Quantity:

Specifications

Product: tempered laminated glass
Thickness: 11.52mm
Composition: 5mm clear tempered glass+1.52mm PVB+5mm clear tempered glass
Size: custom size
Color: clear transparent
Processing: custom size, edges work, polish edge, cutouts, safety corners etc.
Sample: available

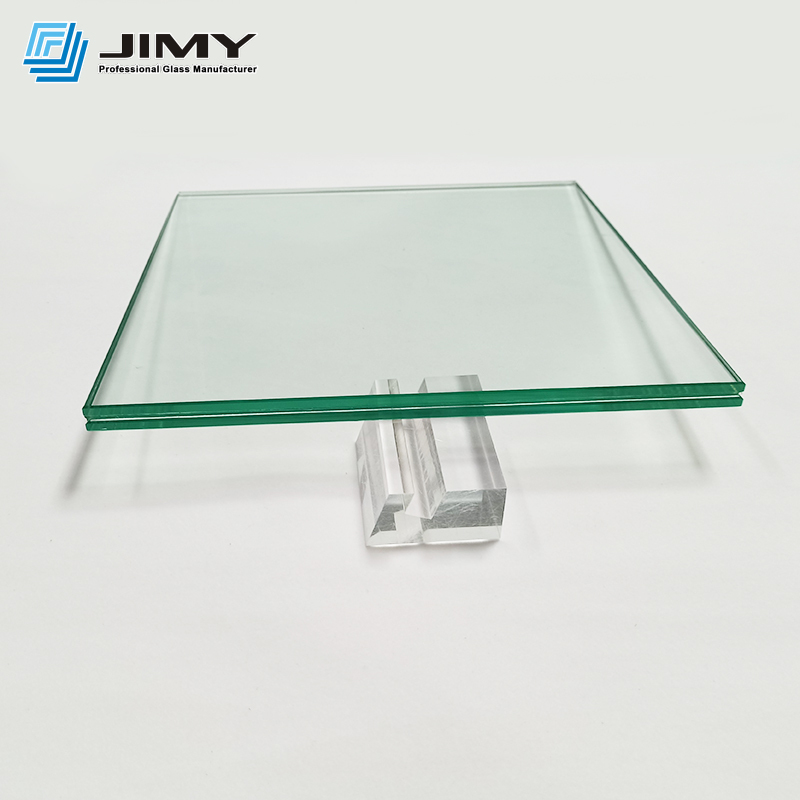

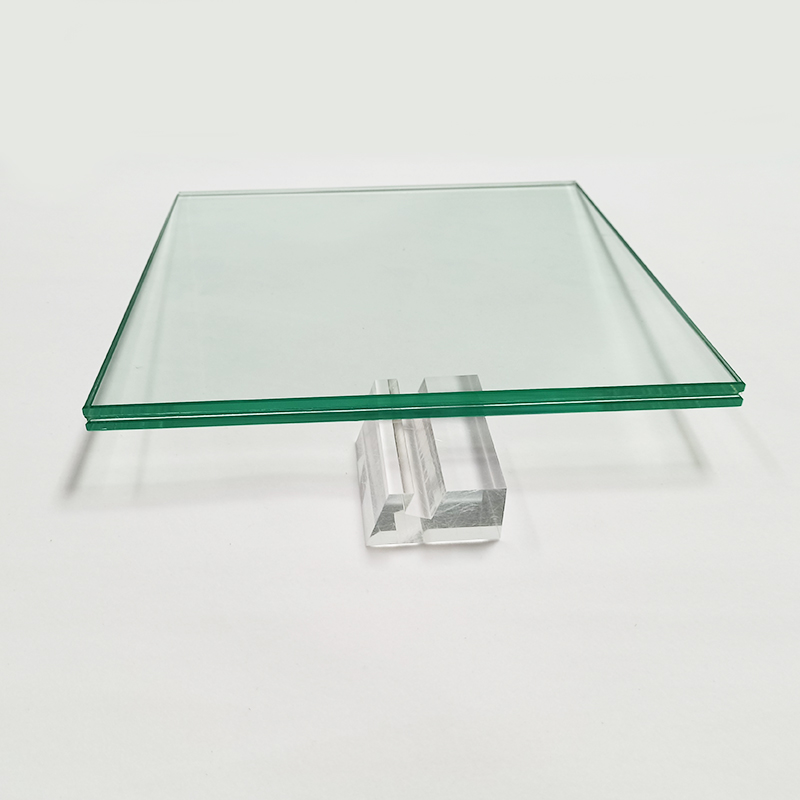

11.52mm Laminated Glass

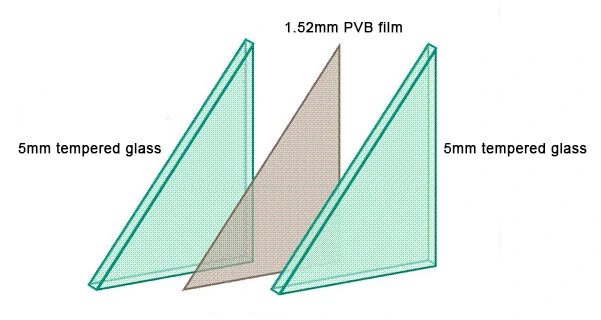

11.52mm Tempered Laminated Glass is made by

taking two sheets of 5mm tempered glass glass

and sandwiching a 1.52mm polyvinyl butyl (PVB)

membrane between them. The PVB membranes

are available in a variety of thicknesses.


Characteristics of Tempered Laminated Glass

Enhanced UV filtration


Laminated glass filters about 99% of the most

damaging portion of the UV spectrum. UV

filtration helps mitigate fading of interior finishes

– art work, book collections, carpets, wood floors,

drapes, furnishings etc.

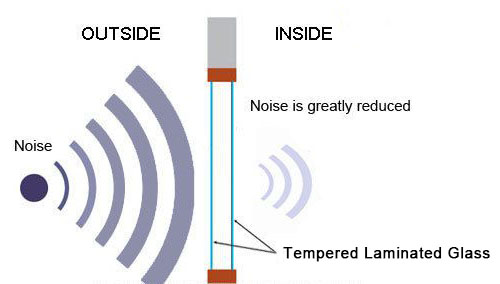

Enhanced sound abatement ratings


Introducing a PVB membrane into the glass make

up significantly enhances sound abatement

properties by blocking sound waves and reducing

vibration – particularly appealing in noisy urban

applications. For more extreme sound levels,

laminated glass can be used on the inner and

outer panes of IG unit to increase the sound

attenuation.

Enhanced security


Security and peace of mind are distinct benefits

and both can be enhanced using laminated glass.

With an appropriate PVB interlayer thickness(such

as 1.52mm), laminated glass can resist repeated

hammer blows for an extended length of time

without the glass actually coming out of the

window.

Safety from flying glass and debris


The PVB membrane prevents glass shattering

under impact . It holds all the shards together on

the membrane so they cannot become lethal. By

comparison, tempered glass when impacted

breaks into thousands of small pieces that fall

from the door or window.

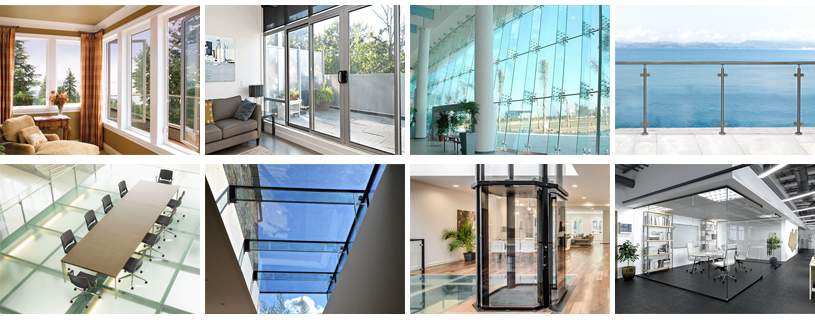

Applications of Tempered Laminated Glass

  • Due to their sound insulation properties, they are also used at airport terminals, recording studios, acoustic glazing, hotels, data – processing centers, aircraft, etc.
  • In areas where hurricanes and tornadoes are common, laminated glass is used in glass facades, windows, doors, or in any exterior applications.
  • It is commonly used as protection in structures like banks, money-exchange centers, jewelry shops, showrooms, museums, art galleries, aquariums, etc.
  • It is also used as structural glass such as glass railings, glass floors, skylight glazing, roofs, curtain walls, glass facades, etc.
